A 15W solar street light is a versatile outdoor lighting solution, ideal for residential streets, parks, gardens, and pathways. At this wattage, the light typically provides about 1,800 to 2,400 lumens, making it suitable for mounting at a height of 4 to 6 meters.
Technical Specifications
While configurations vary by manufacturer, a standard "Industrial Grade" 15W system usually includes the following:
| Component | Typical Specification |
|---|---|
| LED Luminary | 15W (Nichia, Osram, or Philips chips) |
| Luminous Efficacy | 120 - 160 Lumens/Watt |
| Solar Panel (PV) | 40W - 50W (Polycrystalline or Monocrystalline) |
| Battery (LiFePO4) | 12.8V / 12Ah - 18Ah (or 3.2V / 40Ah) |
| Charge Controller | PWM or MPPT with Dusk-to-Dawn sensor |
| Autonomy | 2–3 rainy days (with dimming features) |
| IP Rating | IP65 or IP66 (Waterproof & Dustproof) |
Comparison of System Types

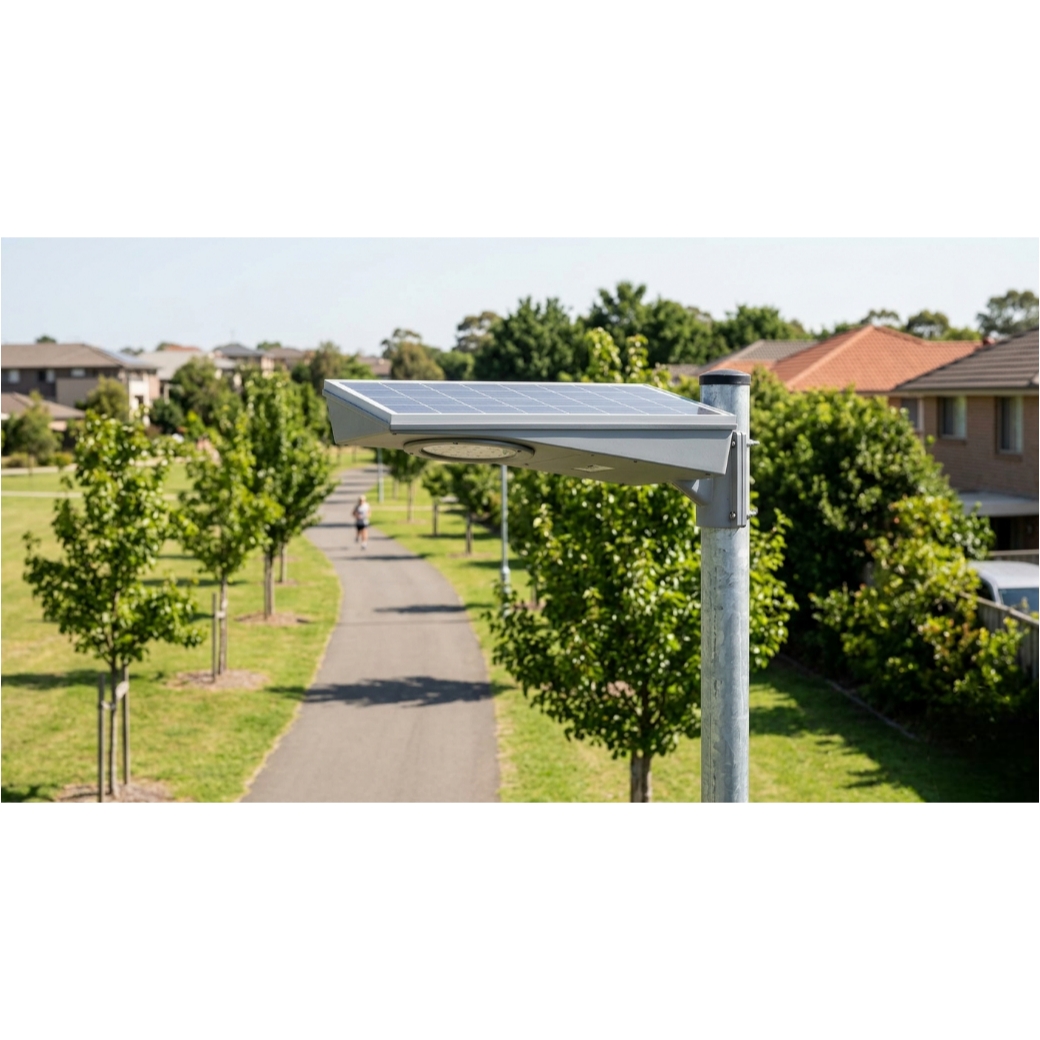

1. All-in-One (Integrated)
* Design: Solar panel, battery, and LED are all housed in a single sleek unit.
* Pros: Extremely easy to install (bolt-on), compact, and theft-resistant since the battery is hidden.
* Cons: Fixed solar panel angle; if the panel is shaded, the whole unit must be moved.
2. Semi-Integrated (Two-in-One)
* Design: The LED and battery are in one housing, while the solar panel is separate.
* Pros: Allows you to tilt the solar panel toward the sun independently of the light direction. This is often more efficient for charging in regions with lower sunlight.
* Cons: Requires minimal wiring between the panel and the light unit.
Key Features to Look For
* PIR Motion Sensor: Many 15W models include a sensor that keeps the light at 30% brightness and jumps to 100% when movement is detected. This significantly extends battery life.
* Dusk-to-Dawn: Automatic switching—the light turns on at sunset and off at sunrise.
* Aluminium Die-Cast Body: For 15W units, an aluminium body is preferred over plastic (ABS) for better heat dissipation and durability in harsh weather.
Pro Tip: For a 15W light, ensure your solar panel is at least 40W. If the panel is too small (e.g., 20W), the battery won't fully charge on cloudy days, leading to shorter backup time.
