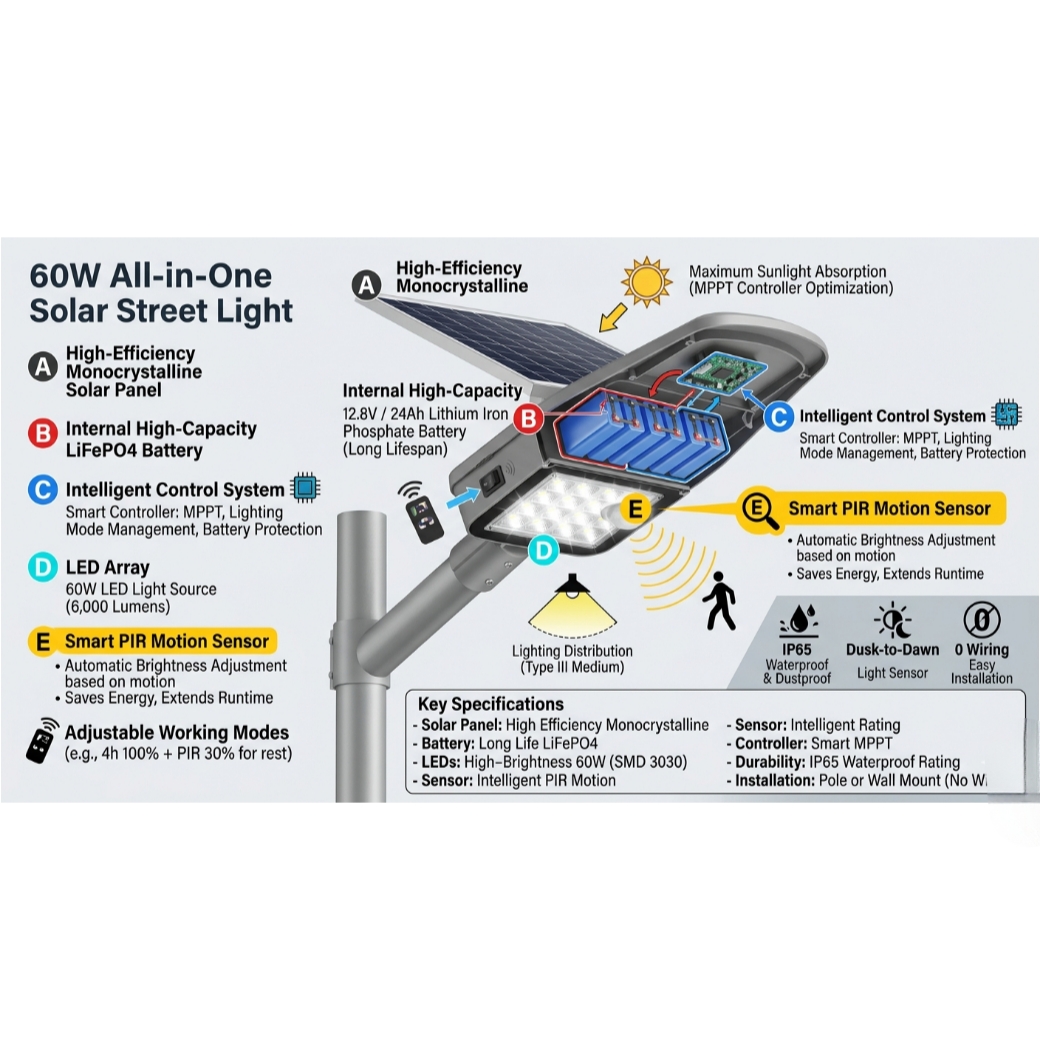

60W Solar Street Light is a high-efficiency, sustainable lighting solution designed for residential streets, parking lots, parks, and pathways. It typically features an "All-in-One" or "Split" design, integrating solar panels, high-performance LEDs, and advanced battery technology to provide reliable dusk-to-dawn illumination.
## Technical Specifications
| Feature | Specification |
|---|---|
| **LED Power** | 60W (High-intensity SMD LEDs) |
| **Luminous Flux** | 6,000 – 7,200 Lumens (Typical efficacy: 100-120 lm/W) |
| **Solar Panel** | 30W – 80W (Monocrystalline or Polycrystalline) |
| **Battery Type** | Lithium Ferro Phosphate (LiFePO4) or Lithium-Ion |
| **Battery Capacity** | 12.8V / 18Ah – 30Ah (Varies by model) |
| **Color Temperature** | 5000K – 6500K (Cool White) |
| **Charging Time** | 6 – 8 hours of direct sunlight |
| **Discharge Time** | 12+ hours per night (Back-up for 2-3 cloudy days) |
| **Mounting Height** | 5 – 7 meters (Recommended) |
| **Ingress Protection** | IP65 or IP66 (Waterproof and Dustproof) |
## Key Features
### 1. Intelligent Control Systems
Most 60W units utilize an **MPPT (Maximum Power Point Tracking)** or **PWM** controller to optimize energy conversion and prevent battery overcharging or deep discharging.
### 2. Smart Lighting Modes
* **Dusk to Dawn:** Automatically switches on at sunset and off at sunrise via a built-in light sensor.
* **PIR Motion Sensor:** The light operates at 30% brightness and ramps up to 100% only when movement is detected, significantly extending battery life.
* **Time Dimming:** Programmed to provide 100% brightness for the first 4 hours and reduced intensity for the remaining night hours.
### 3. Durable Construction
The housing is generally made of **Die-Cast Aluminum Alloy** or high-grade **ABS plastic**, featuring anti-corrosion coating and heat-dissipating fins to ensure the longevity of the LED chips.
## Installation & Maintenance
* **Easy Setup:** No trenching, cabling, or electrical wiring is required. The unit can be mounted directly onto a pole or wall.
* **Zero Utility Cost:** Operates entirely on renewable energy, reducing carbon footprints and monthly electricity bills.
* **Minimal Maintenance:** Requires only occasional cleaning of the solar panel surface to ensure maximum sunlight absorption.
## Applications
* Rural and Urban Roadways
* Public Parks and Playgrounds
* Industrial Perimeters
* Campus and Courtyard Lighting
* Large Scale Parking Lots
**Note:** For optimal performance, ensure the solar panel is installed in a location with no shade (trees, buildings, etc.) and is oriented toward the sun (South-facing in the Northern Hemisphere)
