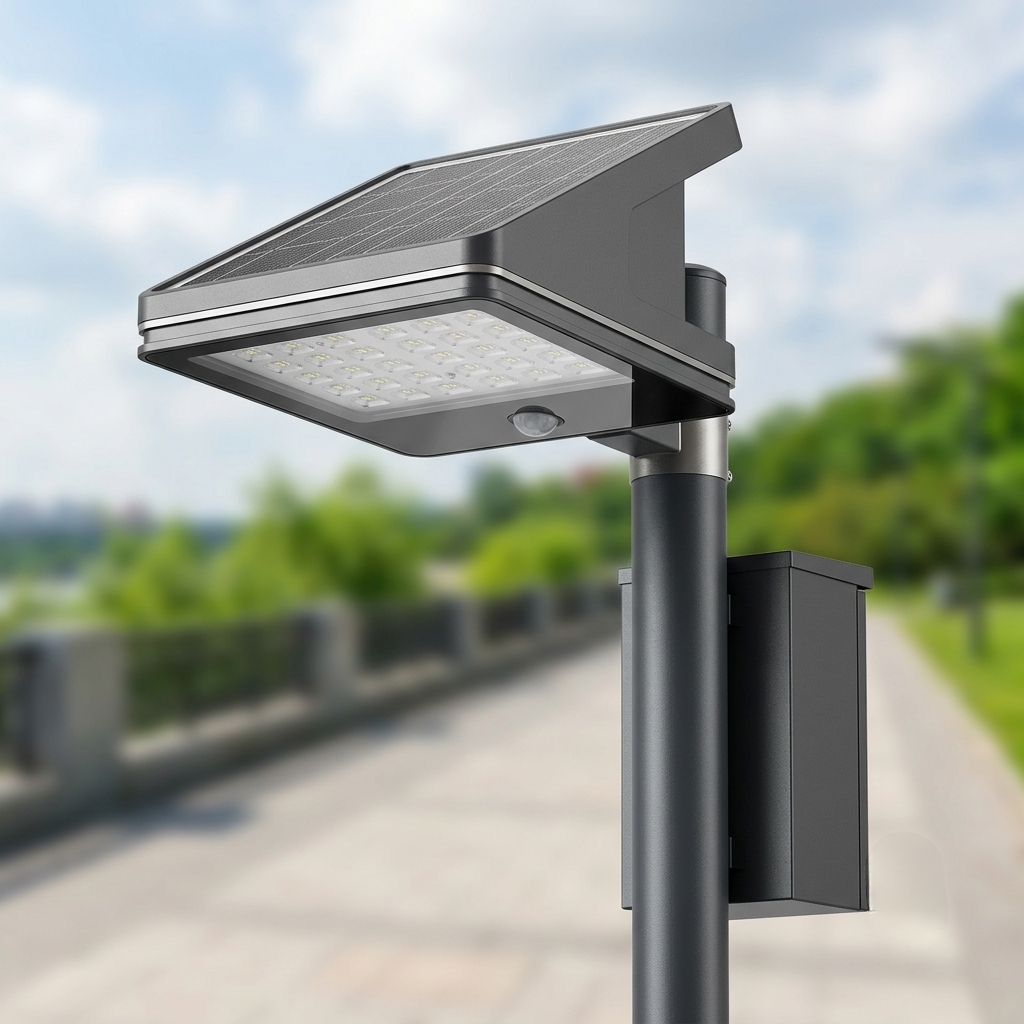

Designing a **Square Semi-Integrated (Two-in-One) Solar Street Light** is a great approach. "Semi-integrated" means the solar panel is separate, while the battery, LED module, and smart controller are built into a single, compact square fixture. This setup lets you angle the solar panel perfectly toward the sun while keeping the light fixture sleek and modern.
Here is a comprehensive design concept, including technical specifications and structural layout, to help you create or source this product.
## ## Design Overview & Aesthetics
* **Shape:** Slim, low-profile square housing with clean, modern geometric lines.
* **Material:** Die-cast aluminum alloy (for excellent heat dissipation and weatherproofing) with a powder-coated finish (grey, black, or white).
* **Light Emitting Surface:** A flat, square tempered glass or high-grade optical PC lens covering the bottom of the fixture to distribute light evenly.
## ## Technical Specifications (Standard 40W–60W Configuration)
This is a versatile specification sweet spot for community roads, courtyards, and parking lots.
| Component | Specification | Description |
|---|---|---|
| **LED Power** | 40W to 60W | High-efficiency SMD3030 or SMD5050 LED chips (16
| **Solar Panel** | 18V / 60W–80W | Monocrystalline silicon (mounted separately on top of the pole). |
| **Battery (Internal)** | 12.8V / 30Ah–42Ah | LiFePO4 (Lithium Iron Phosphate) — safe, long lifespan (2000 cycles). |
| **Controller** | 12V/24V MPPT | Smart Maximum Power Point Tracking with dimming capabilities. |
| **IP Rating** | IP65 / IP66 | Completely dust-tight and water-resistant for harsh weather. |
## ## Structural Component Layout
### 1. The Square Light Fixture (The "Brain" & "Bulb")
Because it is semi-integrated, the square body houses everything *except* the solar panel.
* **Bottom Layer:** The LED matrix arranged in a square grid, paired with a wide-angle lens (typically 140^\circ \times 70circ asymmetric beam angle) to maximize ground coverage.
* **Middle Layer:** An airtight, waterproof compartment holding the **LiFePO4 battery pack** and the **MPPT controller**.
* **Top Side:** Features a heavy-duty mounting bracket interface and a waterproof plug/cable to connect to the external solar panel.
### 2. The External Solar Panel
* A separate rectangular or square monocrystalline panel.
* It mounts at the very top of the pole on a 360-degree adjustable bracket, allowing you to face it true South (or North, depending on your hemisphere) regardless of where the light fixture needs to point.
## ## Smart Features & Working Modes
To ensure the square light lasts through rainy days without a massive battery, embed these smart functions into the MPPT controller:
* **PIR Motion Sensor:** Built right into the center of the square LED panel.
* *No motion:* Dims to 30% brightness to save energy.
* *Motion detected:* Instantly ramps up to 100% brightness for 20 seconds.
* **Time Dimming Profile:** Programmed to adapt to natural human activity.
* *First 3 hours:* 100% brightness (Peak hours).
* *Next 3 hours:* 60% brightness.
* *Dawn hours:* 30% brightness until the sun comes up.
## ## Installation Advantages
* **Optimized Solar Efficiency:** Unlike fully integrated "All-in-One" lights where the panel must face wherever the light faces, this design ensures you never sacrifice solar charging efficiency for light direction.
* **Wind Resistance:** The compact, square profile of the light head has a lower wind resistance coefficient compared to long, traditional "cobra-head" shape.
