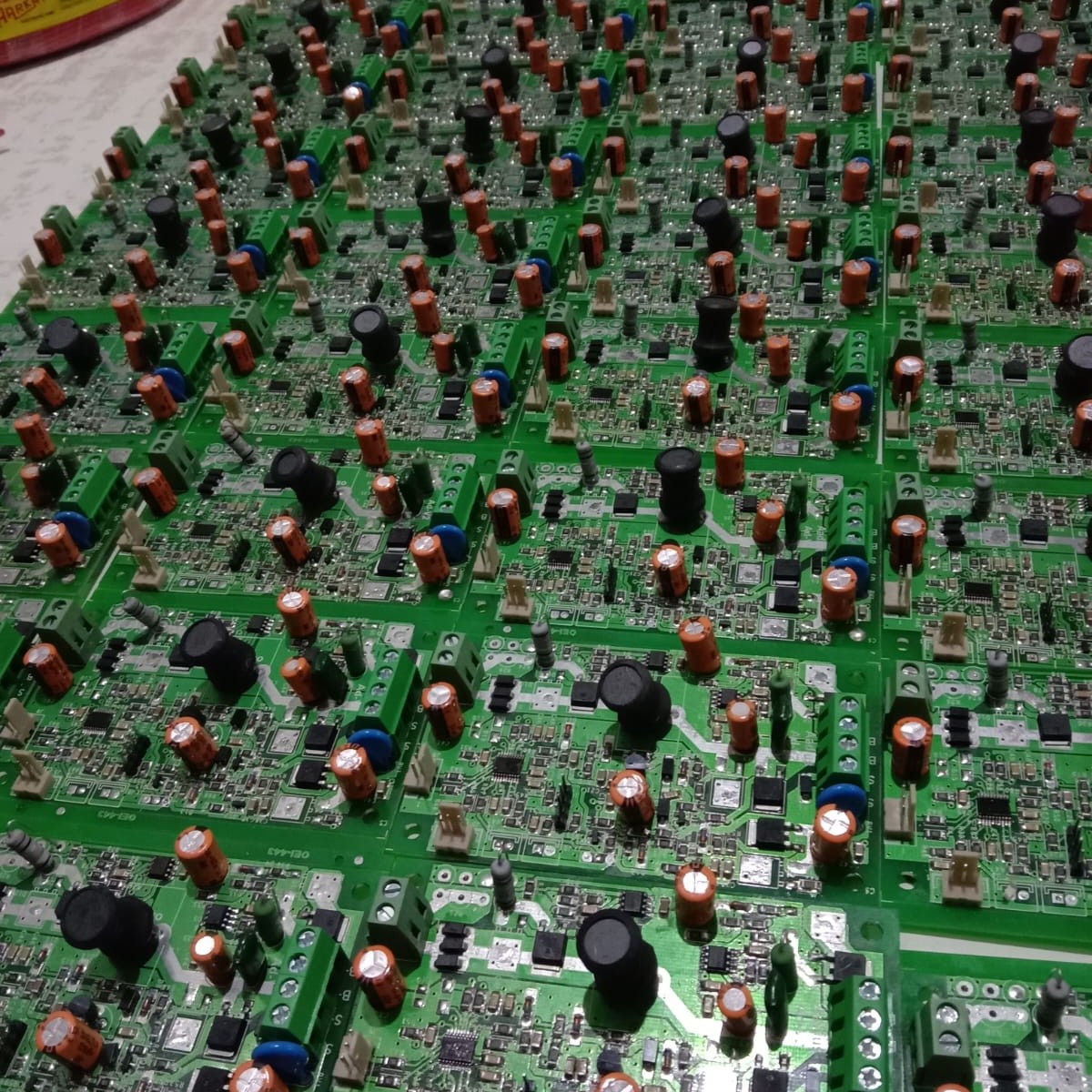

40W Solar Street Light Drivers acts as the brain of an outdoor solar lighting system. Unlike standard AC-powered LED drivers, a solar LED driver is typically a **DC-to-DC system** that integrates constant-current LED driving with smart battery charging and power management.
Below are the typical technical specifications, features, and electrical details for a 40W solar street light driver:
## Technical Specifications
The specifications generally fall into two categories depending on whether the driver uses **PWM (Pulse Width Modulation)** or **MPPT (Maximum Power Point Tracking)** technology.
| Parameter | Typical Specification |
|---|---|
| **System Wattage** | 40W |
| **Input Voltage (Battery/Panel)** | 12V DC or 24V DC (Auto-sensing in premium models) |
| **LED Output Type** | Constant Current (CC) |
| **Output Current Range** | 350mA to 2.0A (Configurable based on LED array configuration) |
| **Output Voltage Range** | DC 15V – 60V (Boost/Buck-Boost depending on the LED layout) |
| **Driver Efficiency** | \ge 90\% to 96\% |
| **Power Factor** | 0.90 to 0.95 |
| **IP Rating** | IP65 or IP67 (Waterproof, dustproof extruded aluminum or sealed plastic housing) |
| **Surge Protection** | 4 kV to 10 kV (Crucial for outdoor/lightning protection) |
## Key Features & Functionalities
### 1. Dual Control (MPPT vs. PWM Charge Controllers)
Most modern 40W drivers come with a built-in solar charge controller.
* **MPPT Drivers:** Extract up to 20–30% more energy from the solar panel. They track the maximum power voltage of the panel and step it down efficiently to charge the battery.
* **PWM Drivers:** More cost-effective but less efficient. They match the panel voltage directly to the battery voltage.
### 2. Battery Compatibility
The drivers are programmed with strict charging profiles tailored to specific battery chemistry to prevent degradation:
* **Lithium Ferro Phosphate (\text{LiFePO}_4):** Typically 12.8V / 24V setups.
* **Lithium-Ion (Li-ion):** Typically 11.1V setups.
* Compatible capacities for a 40W load usually range between **24 Ah to 54 Ah** to ensure a minimum of 12 hours of runtime.
### 3. Smart Dimming & Dusk-to-Dawn Automation
To conserve battery life through rainy days or long winter nights, the drivers include programmable dimming profiles:
* **Time Dimming:** e.g., 100% brightness for the first 4 hours, 50% for the next 3 hours, and 30% until dawn.
* **PIR / Microwave Motion Sensor Interface:** Keeps the light at a low idle state (e.g., 20% brightness) and ramps up to 100% only when motion is detected.
### 4. Comprehensive Protection Circuitry
Because these drivers operate autonomously outdoors, they include built-in safety mechanisms:
* **Battery Protections:** Over-charge protection, over-discharge (Deep discharge) protection, and reverse polarity protection.
* **LED Protections:** Short-circuit protection and open-circuit protection.
* **Thermal Management:** Over-temperature protection that automatically dims the light if the driver or battery exceeds safe operating temperatures (usually above 55°C to 65°C).
## Typical Application Wiring Diagram
In an **All-in-One** or **Semi-Integrated** 40W street light system, the wiring path is straightforward:
1. **Solar Panel (PV+, PV-)** \rightarrow Connects to the driver input to harvest energy.
2. **Battery (BAT+, BAT-)** \rightarrow Connects to the driver for bidirectional power (charging by day, discharging at night).
3. **LED Array (LED+, LED-)** rightarrow Connects to the regulated constant-current output of the driver.
4. **Sensor (Optional)** \rightarrow A 3-pin plug for the motion sensor module.
