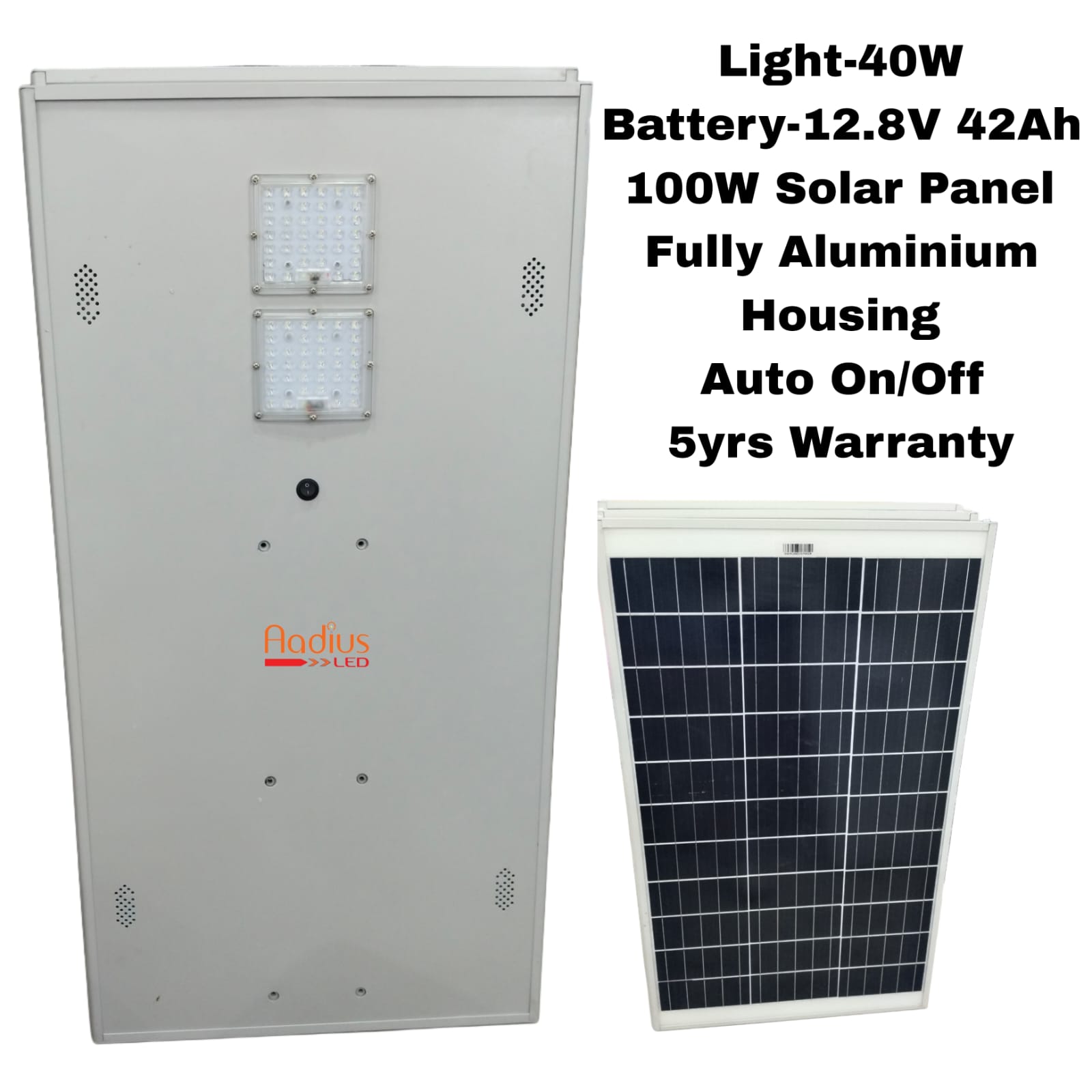

A 40W All-in-One (AIO) Solar Street Light is a compact, plug-and-play lighting solution where the solar panel, LED light engine, lithium battery, and smart controller are all integrated into a single housing.
Because everything is contained in one unit, these are popular for pathways, residential streets, and parking lots where quick installation and theft prevention are priorities.
🛠️ Key Technical Specifications (Standard)
While specs vary by manufacturer, a high-quality 40W unit typically features:
| Component | Typical Specification |
|---|---|
| LED Power | 40W (generating ~5,200 – 6,000 Lumens) |
| Solar Panel | 60W – 100W Mono-crystalline (highly efficient) |
| Battery | 12.8V 24Ah – 30Ah LiFePO4 (Lithium Iron Phosphate) |
| Charge Controller | MPPT (Maximum Power Point Tracking) |
| Motion Sensor | PIR or Microwave (dims to 30% when no motion detected) |
| Installation Height | 5 – 7 meters (approx. 16 – 23 feet) |
| IP Rating | IP65 or IP66 (Waterproof & Dustproof) |
🌟 Why Choose the 40W AIO Model?
* Zero Wiring: No trenching or external cabling is required. You simply mount it to a pole or wall.
* Theft Protection: Since the battery is locked inside the light fixture high on the pole, it is much harder to steal than traditional ground-level lead-acid batteries.
* LiFePO4 Battery: Modern units use LiFePO4, which offers a longer lifespan (up to 8–10 years) and better heat resistance compared to standard Lithium-ion.
* Smart Energy Saving: Most 40W units use PIR Motion Sensors. They run at a dim "energy-saving" mode and kick into 100% brightness only when someone passes by, ensuring the light lasts through the entire night even during cloudy weather.
⚠️ Common Considerations
* Orientation: Because the panel is fixed to the light body, you must ensure the entire light is tilted or positioned to face the sun (usually South in the Northern Hemisphere) for maximum charging.
* Maintenance: While low maintenance, if one component (like the battery) fails after several years, the entire unit usually needs to be opened up on-site, which can be more complex than "split" systems.
💡 Pro-Tip for Buying
Check the Lumen Efficacy. A 40W light with 150 lm/W (6,000 lumens) will be significantly brighter than a 40W light with 100 lm/W (4,000 lumens). Don't just look at the wattage—look at the brightness.
