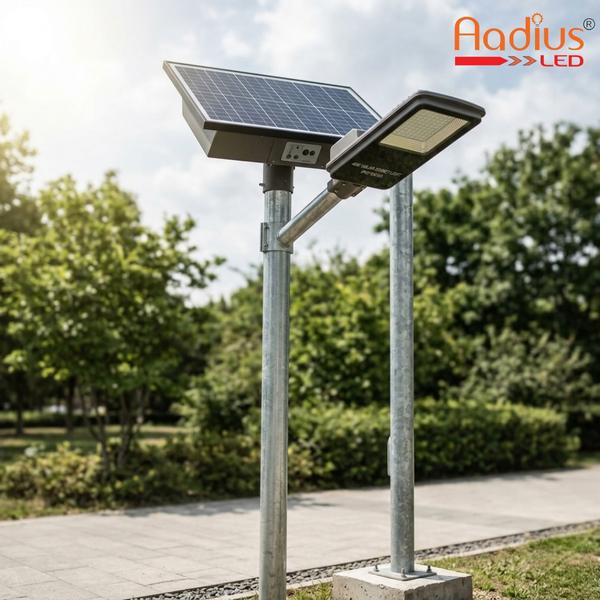

15W Solar Street Lights Installation in Uttarakhand & Himachal Pradesh.
A 15W Solar Street Light paired with a 12.8V 15Ah LiFePO4 battery is a highly efficient setup for residential streets, pathways, and garden lighting. The use of a 12.8V system (nominal voltage for Lithium Iron Phosphate) is superior to standard 3.7V or 11.1V systems because it offers better thermal stability and a longer life cycle.
Core Specifications
| Feature | Details |
| LED Wattage | 15W (Typically producing 1,800 – 2,250 Lumens) |
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Battery Capacity | 12.8V 15Ah (Total Energy: 192Wh) |
| Solar Panel | Recommended 30W 40W (Mono or Polycrystalline) |
| Charging Time | 6 – 8 hours of bright sunlight |
Performance Breakdown
* Efficiency: The 12.8V architecture reduces current flow for the same power compared to lower voltage systems, which minimizes heat loss in the wiring and controller.
* Lifespan: LiFePO4 batteries are rated for 2,000 to 3,000 cycles, meaning the battery should last 5–8 years before needing replacement.
* Smart Controls: Most models include a PIR Motion Sensor. The light typically stays at 30% brightness and ramps up to 100% only when motion is detected, significantly extending the 15Ah battery's runtime.
Installation Guidelines
* Recommended Mounting Height: 4 to 5 meters 5m & 6m
* Recommended Spacing: 10 to 12 meters between poles for uniform light distribution.
* Inbuilt Protections: Ensure the unit has an integrated BMS Battery Management System for overcharge, deep discharge, and short-circuit protection. Note: For optimal performance, ensure the solar panel is tilted toward the south (in the northern hemisphere) and kept clear of shadows from trees or buildings
This solar light review explains how to calculate battery runtimes for lithium systems, which is useful for verifying if a 15Ah battery meets your specific backup needs.
A 15W Solar Street Light paired with a 12.8V 15Ah LiFePO4 battery is a highly efficient setup for residential streets, pathways, and garden lighting. The use of a 12.8V system (nominal voltage for Lithium Iron Phosphate) is superior to standard 3.7V or 11.1V systems because it offers better thermal stability and a longer life cycle.
Core Specifications
| Feature | Details |
| LED Wattage | 15W (Typically producing 1,800 – 2,250 Lumens) |
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Battery Capacity | 12.8V 15Ah (Total Energy: 192Wh) |
| Solar Panel | Recommended 30W 40W (Mono or Polycrystalline) |
| Charging Time | 6 – 8 hours of bright sunlight |
Working Time 12+ hours per nigh on Dusk-to-Dawn.
| Backup Autonomy 2 – 3 rainy/cloudy days |Performance Breakdown
* Efficiency: The 12.8V architecture reduces current flow for the same power compared to lower voltage systems, which minimizes heat loss in the wiring and controller.
* Lifespan: LiFePO4 batteries are rated for 2,000 to 3,000 cycles, meaning the battery should last 5–8 years before needing replacement.
* Smart Controls: Most models include a PIR Motion Sensor. The light typically stays at 30% brightness and ramps up to 100% only when motion is detected, significantly extending the 15Ah battery's runtime.
Installation Guidelines
* Recommended Mounting Height: 4 to 5 meters 5m & 6m
* Recommended Spacing: 10 to 12 meters between poles for uniform light distribution.
* Inbuilt Protections: Ensure the unit has an integrated BMS Battery Management System for overcharge, deep discharge, and short-circuit protection. Note: For optimal performance, ensure the solar panel is tilted toward the south (in the northern hemisphere) and kept clear of shadows from trees or buildings
This solar light review explains how to calculate battery runtimes for lithium systems, which is useful for verifying if a 15Ah battery meets your specific backup needs.
