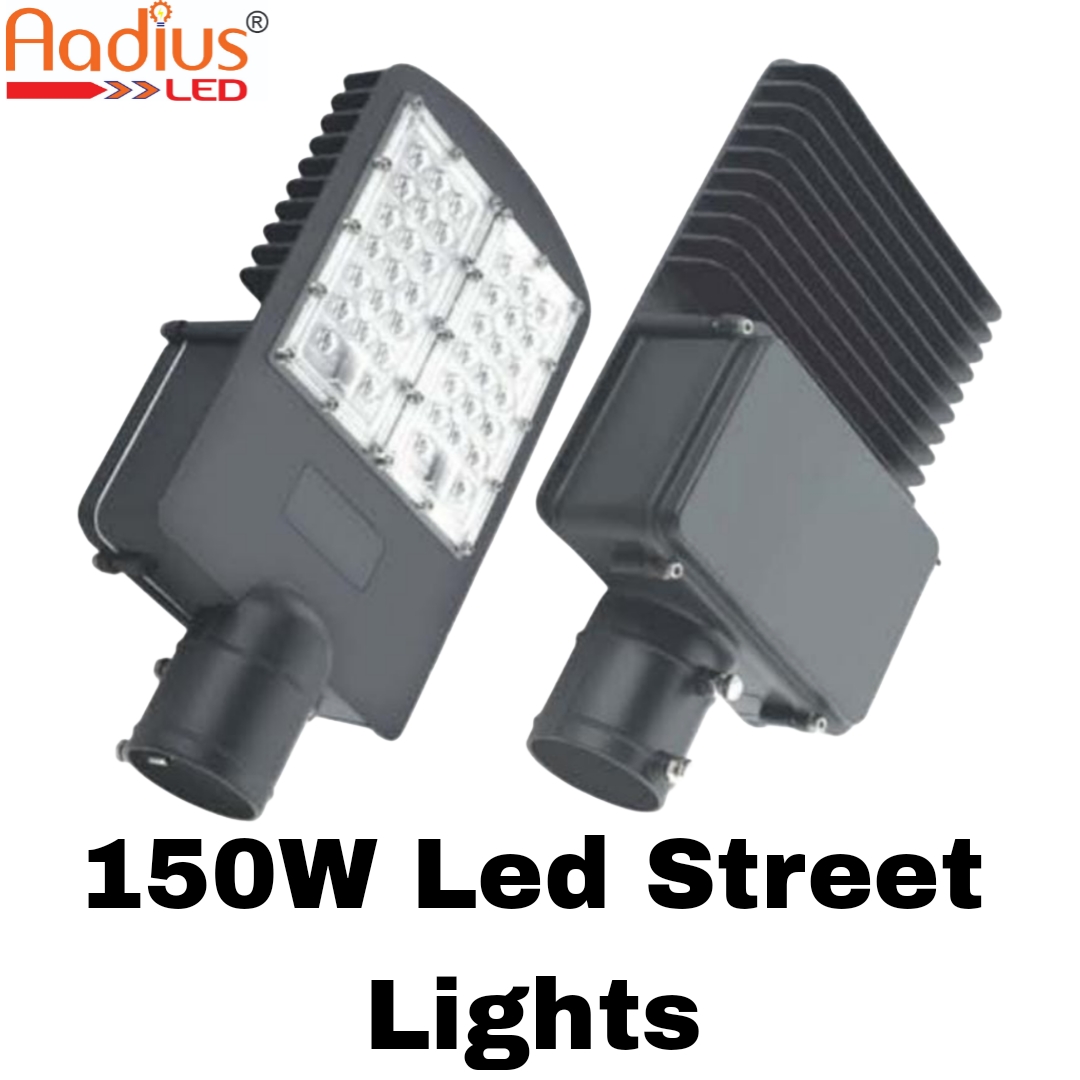

150W LED STREET LIGHT
Product Description:
High-efficiency 150W LED street light designed for roadways, parking areas, and outdoor lighting applications. Offers superior energy savings, long lifespan, and uniform illumination.
Electrical Parameters:
Power Consumption: 150 Watts
Input Voltage: AC 100–277V, 50/60Hz
Power Factor: 0.95
Driver Efficiency: 90%
Surge Protection: 6kV/10kV optional
Optical Parameters:
Luminous Flux: 18,000–22,500 lumens depending on LED brand and CCT
Luminous Efficacy: 120–150 lm/W
Color Temperature (CCT): 3000K / 4000K / 5000K / 5700K
Color Rendering Index (CRI): 70
Beam Angle: 120° or Type II/III/V lens options
Mechanical Parameters:
Housing Material: Die-cast aluminum
Lens Material: Polycarbonate / Tempered glass
Ingress Protection: IP65 / IP66
Impact Resistance: IK08 / IK09
Finish: Powder-coated, corrosion-resistant
Mounting: Pole or bracket mounting (Ø 48–60 mm)
Adjustable Angle: 0–15°
Thermal and Environmental Parameters:
Operating Temperature: –30°C to +50°C
Storage Temperature: –40°C to +70°C
Humidity: 95% RH non-condensing
Lifespan and Warranty:
LED Lifespan: 50,000 hours (L70 @ Ta 25°C)
Warranty: 3–5 years
Certifications and Standards:
CE / RoHS / ISO / BIS / LM79 / LM80 compliant
Applications:
Highways, streets, residential roads, parking lots, industrial areas, campuses, and outdoor public lighting.
