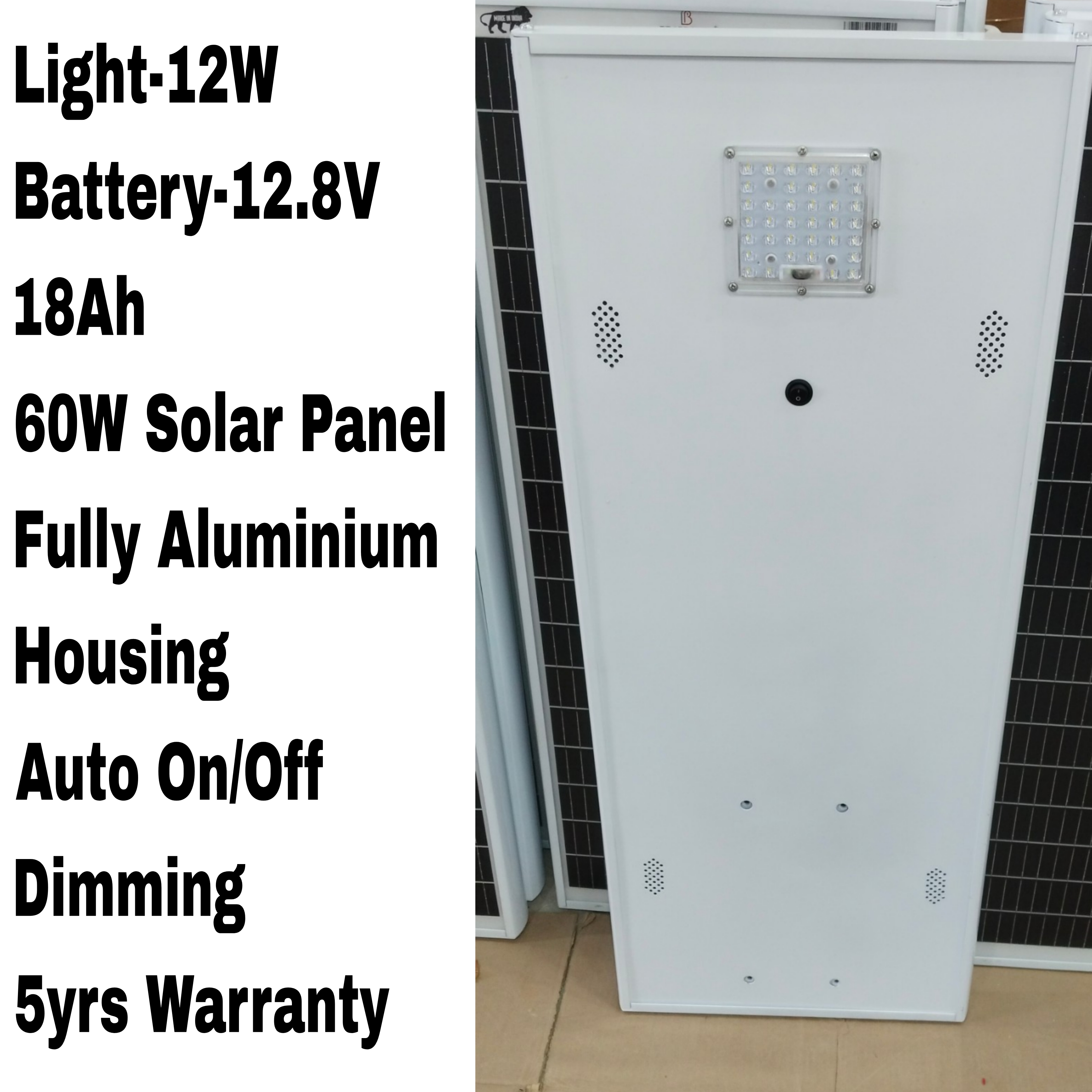

An **All-in-One (AIO) 12W Integrated Solar Street Light** is a compact, wireless outdoor lighting solution designed primarily for pathways, gardens, small streets, and perimeter security. Unlike traditional solar setups, "All-in-One" means the solar panel, LED light source, lithium battery, and charge controller are completely integrated into a single physical unit.
### Core Specifications
While exact specs vary slightly by manufacturer, a standard, high-quality 12W AIO solar street light typically features the following configurations:
| Component | Standard Specification |
|---|---|
| **LED Power** | 12W (Typically delivering around 1,500 to 1,800 Lumens) |
| **Solar Panel** | 25W to 40Wp (Monocrystalline or Polycrystalline) |
| **Battery Type** | Lithium Iron Phosphate (LiFePO_4) or Lithium-ion |
| **Battery Capacity** | 10Ah to 20Ah (12.8\text{V}) |
| **Charging Time** | 6 to 8 hours of optimal sunlight |
| **Backup Time** | 12 to 24 hours (Depending on motion sensor usage) |
| **Waterproof Rating** | IP65 or IP66 (Dust and water-jet proof) |
| **Recommended Pole Height** | 3.5 to 5 meters (approx. 11 to 16 feet) |
### Key Features & How It Works
* **Smart PIR Motion Sensor:** To maximize battery life, the light uses a Passive Infrared (PIR) sensor. By default, it operates in a dimmed energy-saving mode (around 30% to 40% brightness). When it detects motion within a 10–12 meter radius, it instantly switches to 100% full brightness. If no further movement is detected for roughly 30 seconds, it dims back down.
* **Dusk-to-Dawn Automation:** An intelligent charge controller detects ambient light. It automatically cuts off the light and charges the battery during the day, then flips the LEDs on when night falls.
* **Zero Wiring & Easy Maintenance:** Because there are no external wires, the risk of short circuits or accidents is entirely eliminated. Installation requires simply mounting the fixture onto a pole or wall bracket.
* **Anti-Theft Design:** Traditional solar lights have separate, accessible battery boxes that are easy targets for theft. Integrating the battery directly beneath the solar panel inside a sealed housing makes tampering much more difficult.
### Ideal Applications
* **Residential Landscapes:** Garden pathways, courtyards, and housing society bypass roads.
* **Commercial Perimeters:** Parking lots, corporate campus walkways, and resort pathways.
* **Rural Roads:** Village streets and agricultural farms where grid infrastructure is unavailable or expensive to pull.
