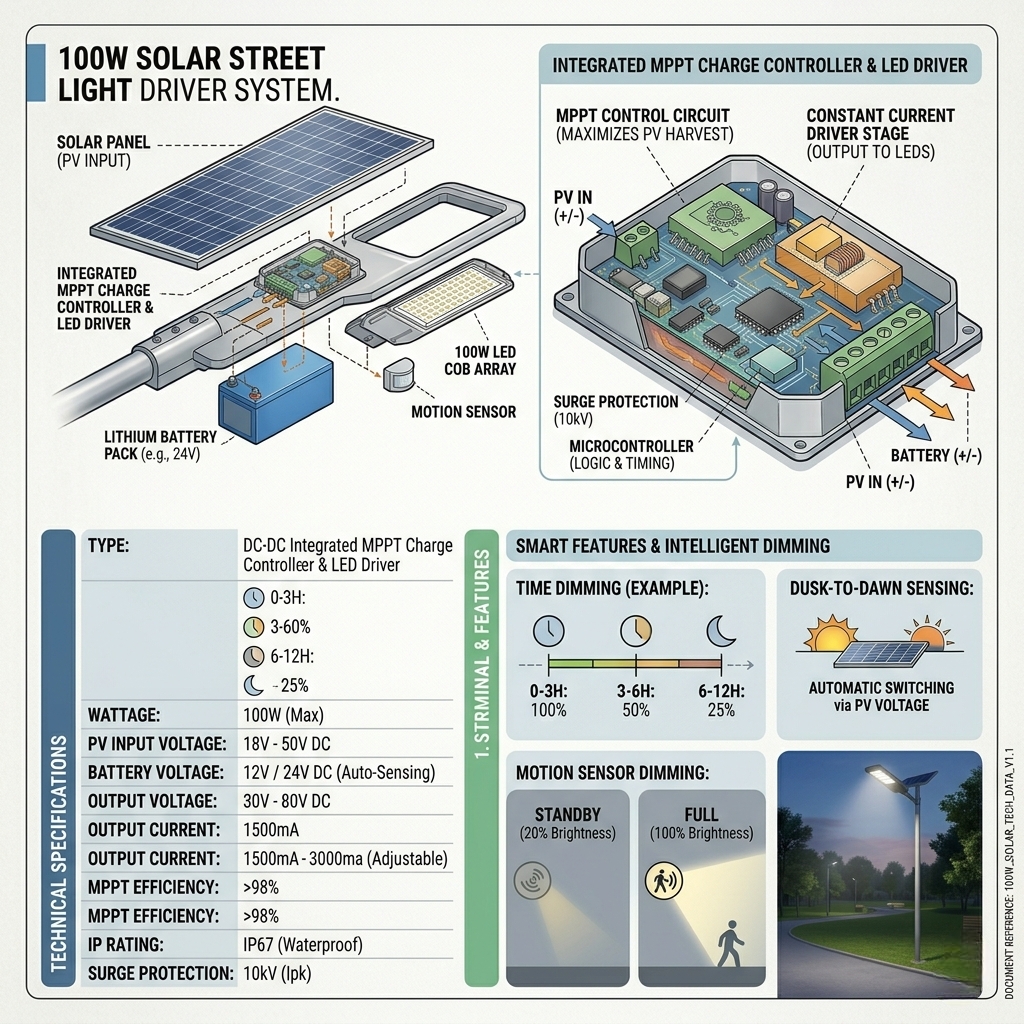

For a 100W solar street light, the driver (or integrated charge controller/driver) is the critical component that manages battery charging from the panels and provides a constant current to the LEDs.
Depending on the system architecture (All-in-One, Semi-Integrated, or Split-Type), the driver details typically fall into two categories: DC-DC Solar Charge Controllers (standard for solar) and AC-DC LED Drivers (used for grid-tied or hybrid systems).
1. Solar Charge Controller & Driver (DC-DC)
Most 100W solar systems use an integrated MPPT or PWM controller that doubles as a constant current LED driver.
* Type: MPPT (Maximum Power Point Tracking) is preferred for 100W systems to maximize efficiency (up to 98%).
* Input Voltage: Typically 12V or 24V DC (battery voltage). The solar panel input usually ranges from 18V to 50V.
* Output Current: Usually adjustable, but for a 100W LED load, it is often around 3000mA (3A) at roughly 30-36V DC.
* Efficiency: Integrated units aim for 95% efficiency to conserve battery life.
* Protections: Over-charge, over-discharge, reverse polarity, and LED short-circuit protection.
2. Standard Technical Specifications
If you are looking for a standalone driver or a replacement card for a 100W luminaire, these are the common benchmarks:
| Feature | Specification Range |
|---|---|
| Wattage | 100W (Max) |
| Input Range | DC 12V / 24V (Auto-sensing in many models) |
| Output Voltage | DC 30V – 80V (depending on LED string configuration) |
| Output Current | 1500mA – 3000mA (Standard: 3000mA for 100W) |
| Surge Protection | 4kV to 10kV (Crucial for outdoor/pole mounting) |
| IP Rating | IP65 or IP67 (Waterproof/Dustproof) |
3. Intelligent Dimming & Motion Sensing
Modern 100W drivers almost always include "Smart Power" features to ensure the light lasts through the night:
* Time Dimming: Often configured in stages (e.g., 100% for the first 3 hours, 50% for the next 3, and 25% until dawn).
* PIR/Microwave Sensor: The driver reduces output to 20-30% brightness when no motion is detected and ramps up to 100% when someone passes by.
* Dusk-to-Dawn: Automatic switching using the solar panel as a photocell.
Note on Grid-Tied Systems: If your 100W street light is connected to the AC grid (not solar), you will likely need an AC-DC Constant Current Driver with an input of 90V-300V AC and a high Power Factor (PF0.95).
